Exclusive E8.5

Exclusive E8.5

Description

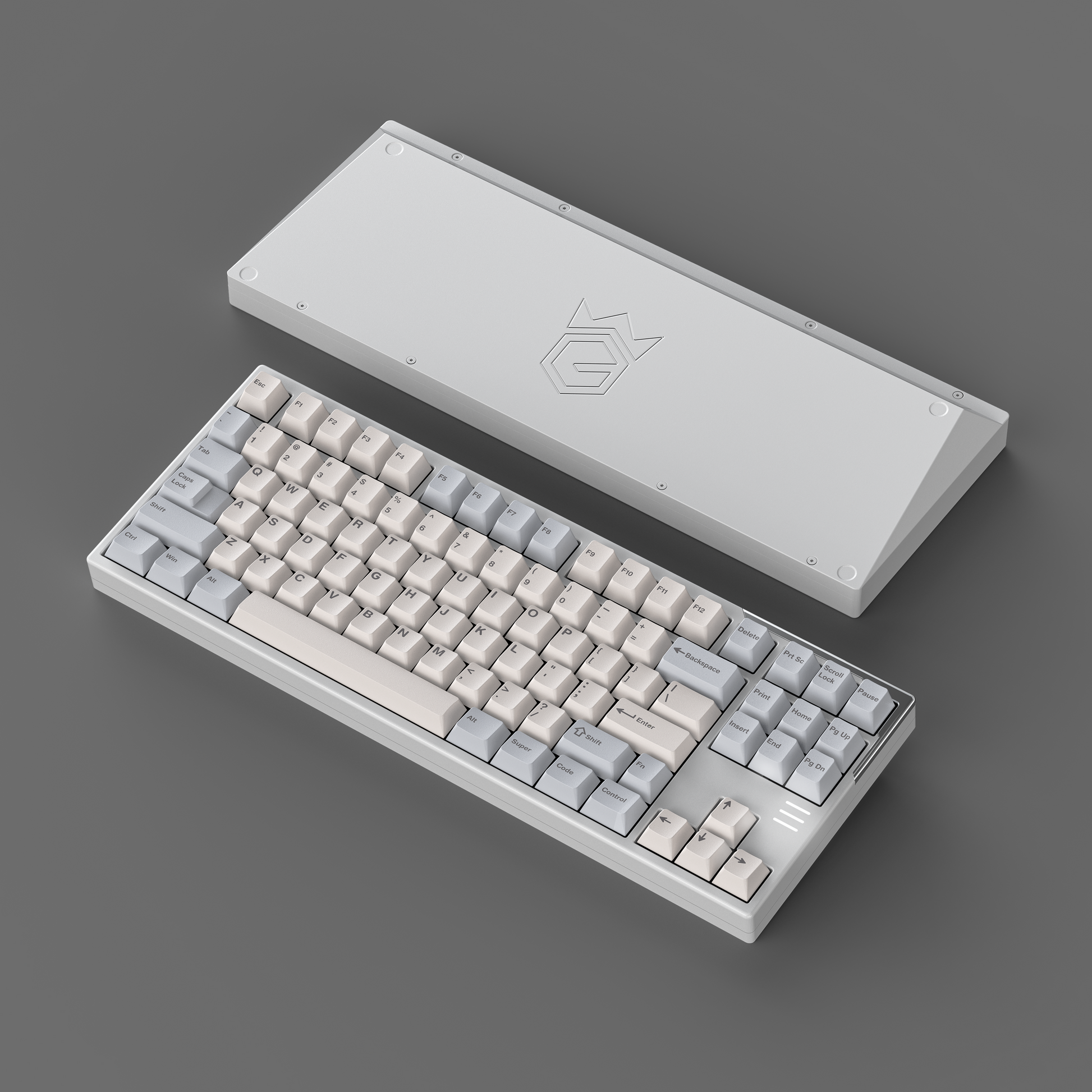

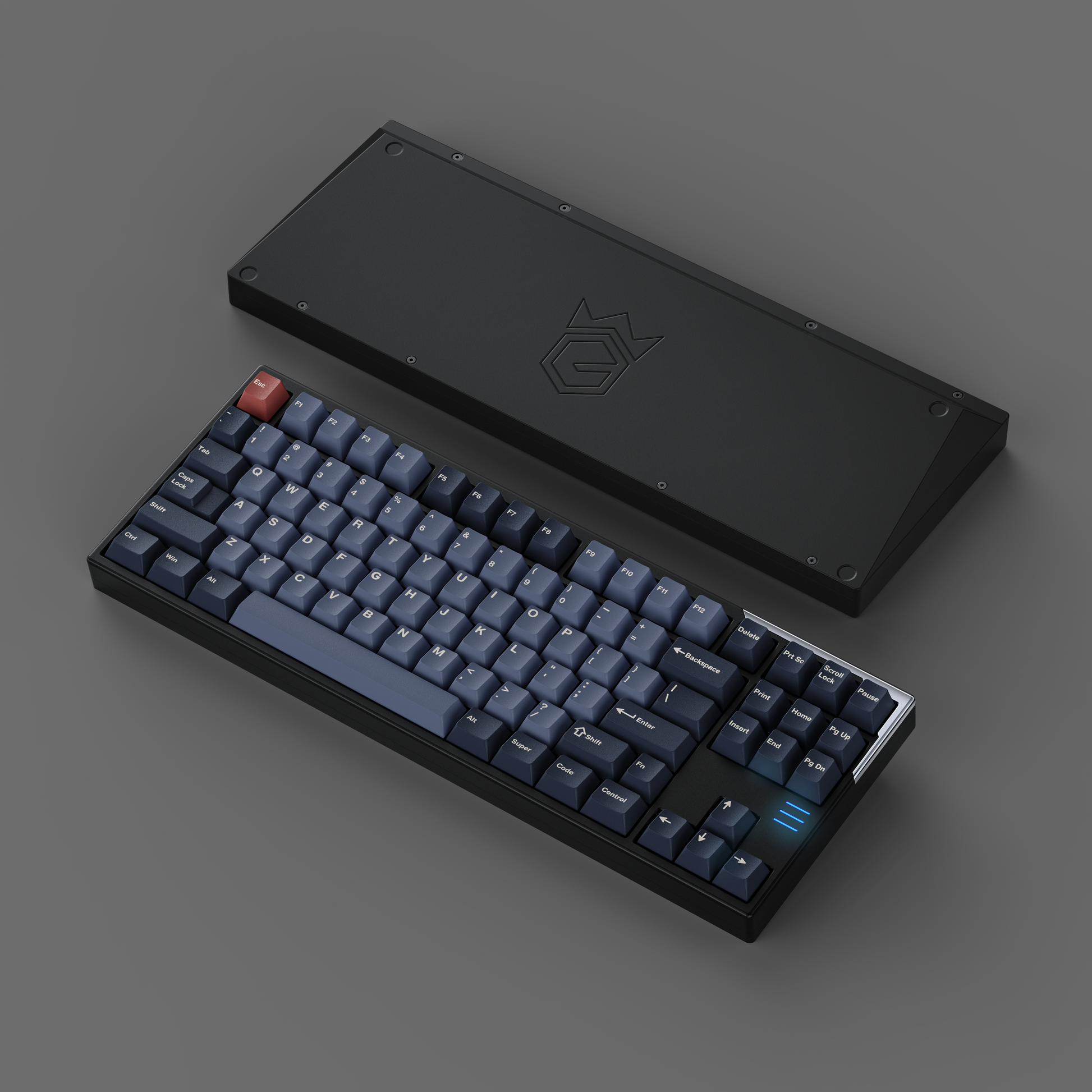

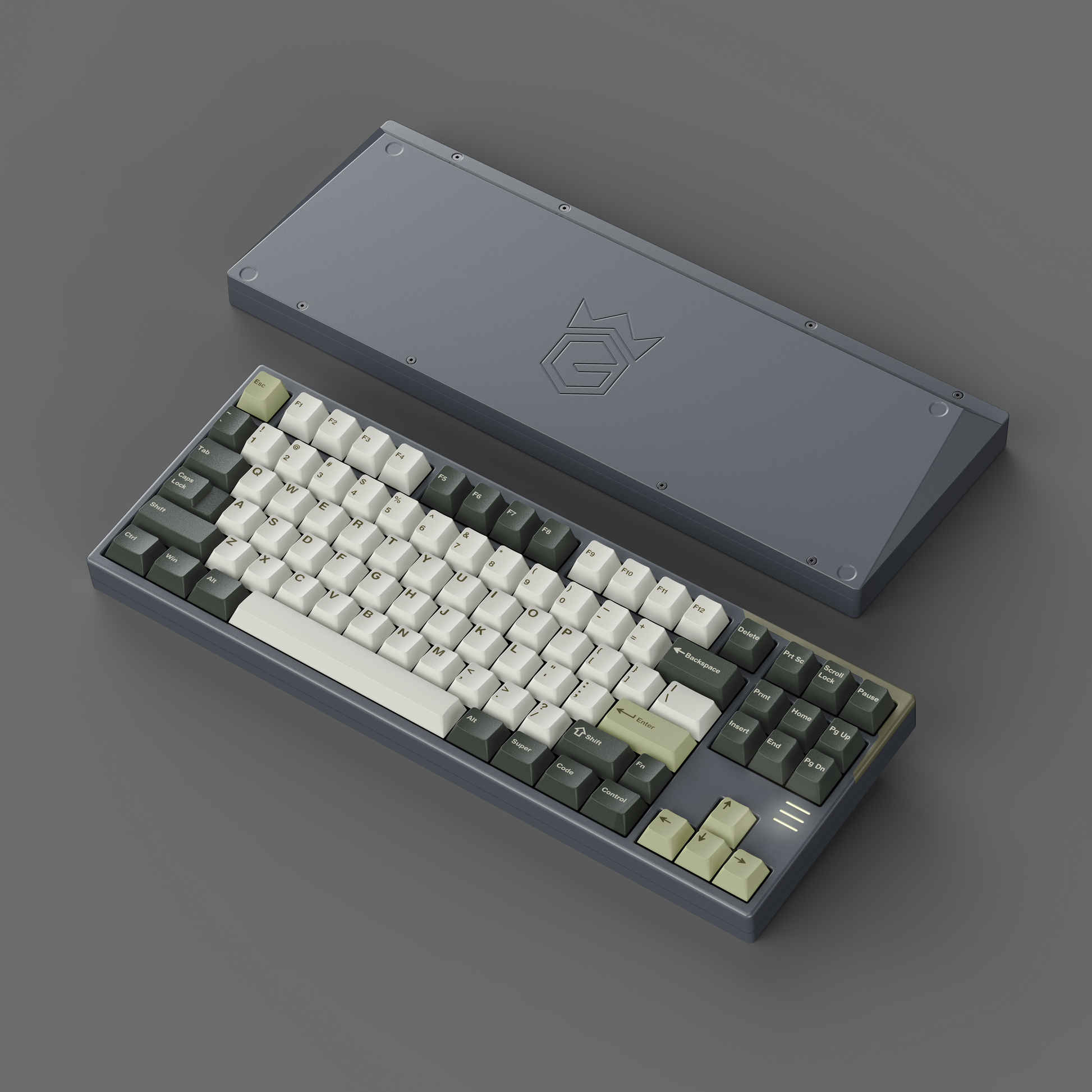

E8.5 is the latest 80% custom keyboard brought by Exclusive Keyboard which was launched in 2020. With all-new structure design of gasket mount and signature top-right tag, you will have thousands of custom options for your new TKL keyboard once again.

View full details

ABOUT E8.5

  • Details
  • Typing Review

Design Details

Related Information

  • Gasket-mounted 7° natural angle + best-in-class TKL feel.

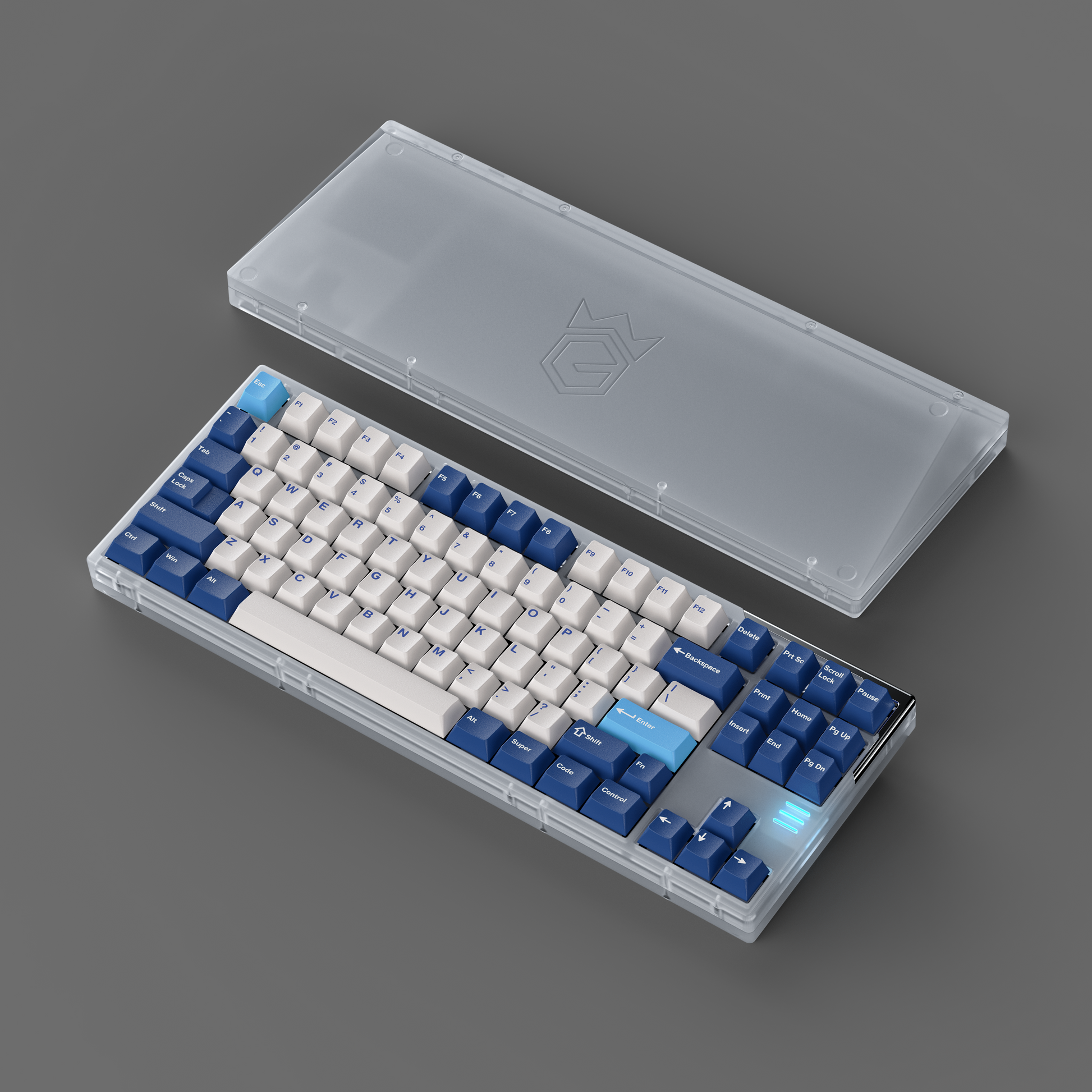

  • Optional inner middle layer (Brass / PC / Aluminum) for full customization.

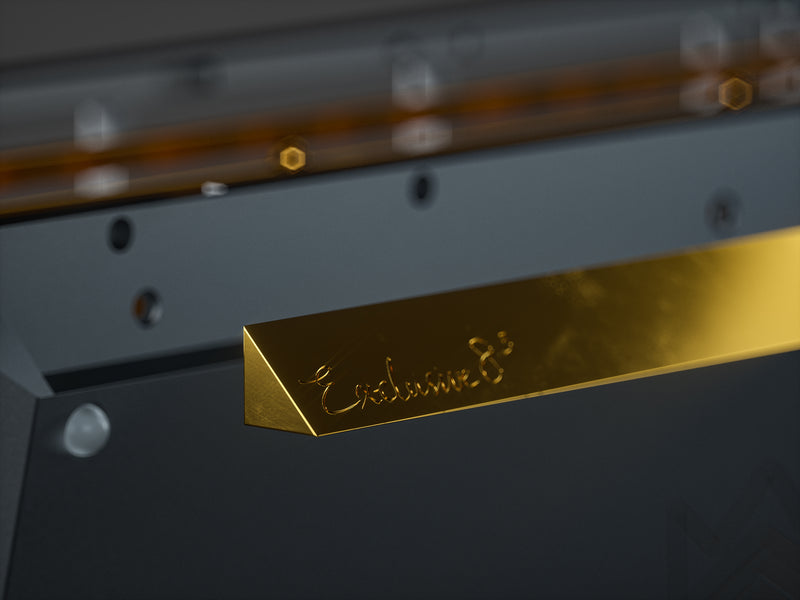

  • This version keeps the traditional triangular side weights but adopts the E6.5-style gasket mount.

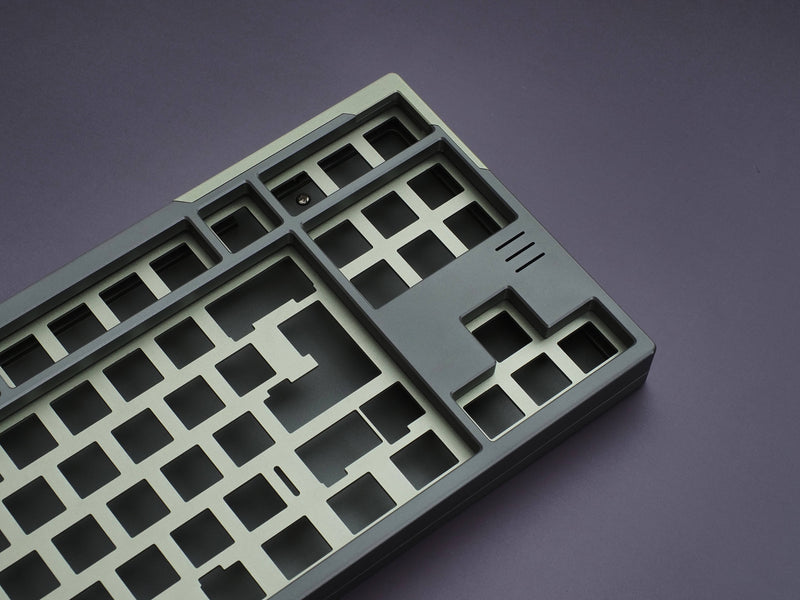

  • The built-in step is now a separate internal midframe (optional PC or copper material, not included standard).
  • These changes fix the unsupported screw satellite axis issue from the E6.5 and improve overall compatibility.

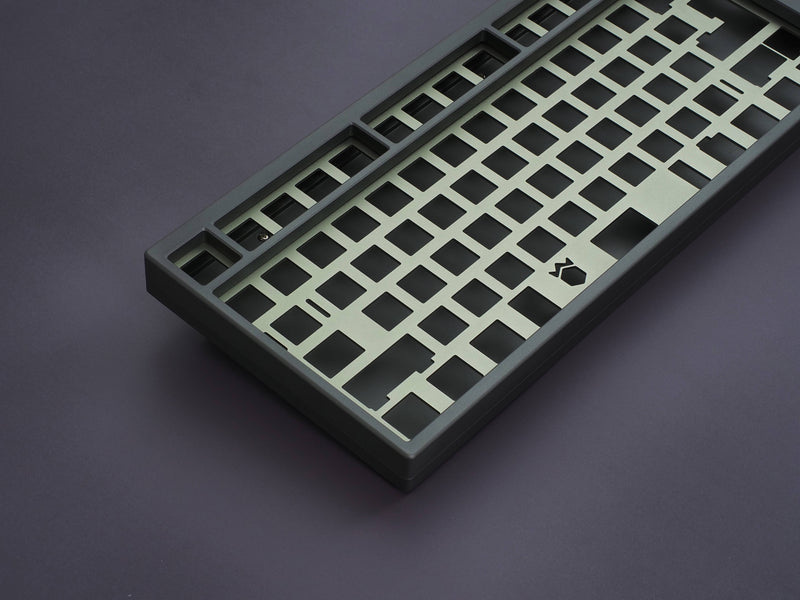

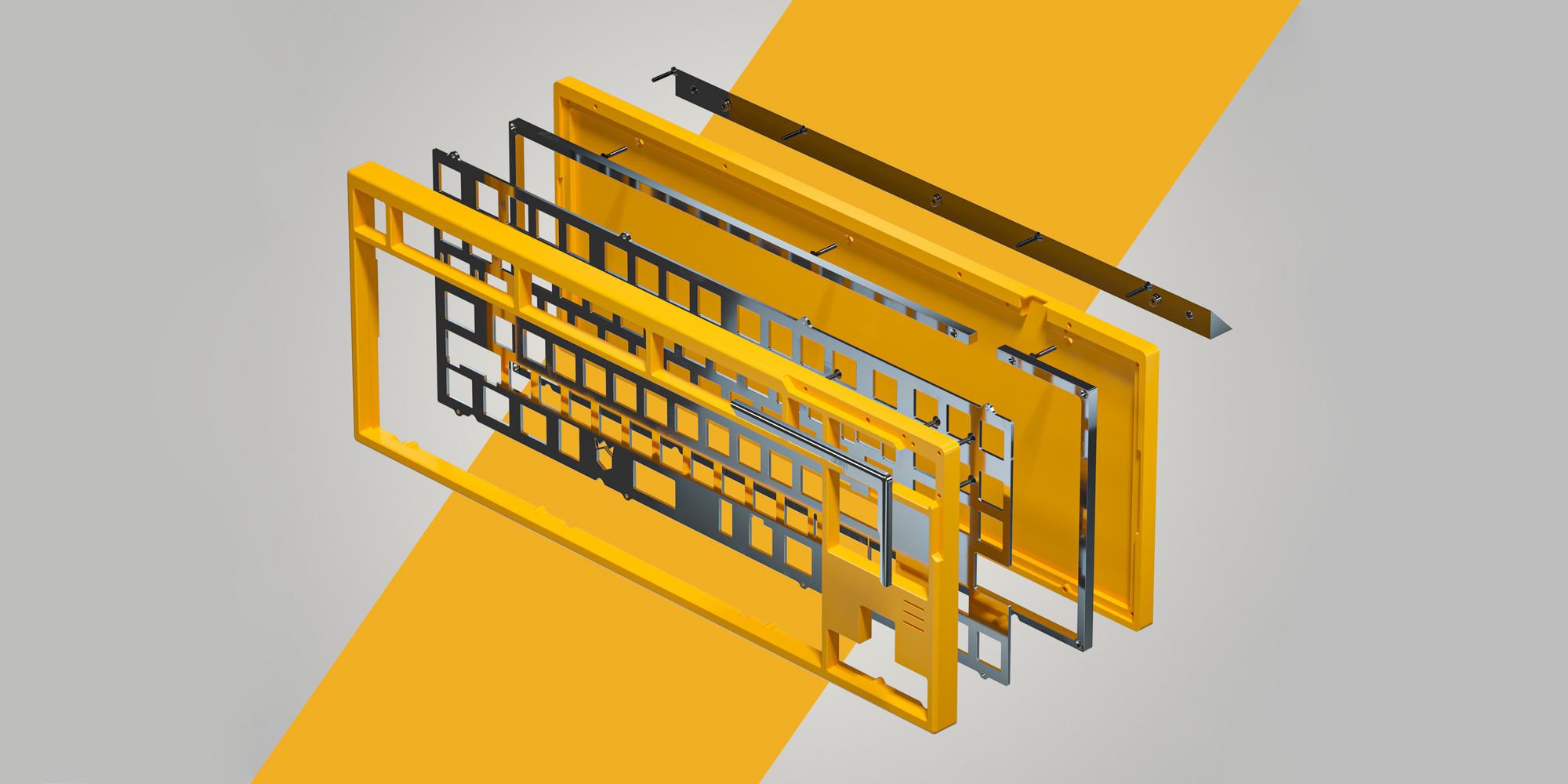

Mount Design

Inner middle for gasket mount (base kit was top mount)

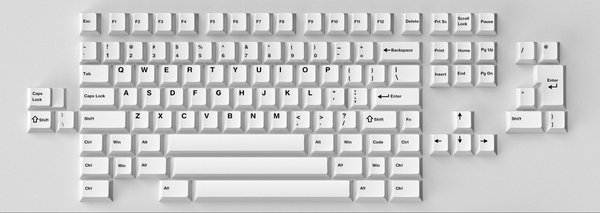

Solder pcb layout:

already add split backspace

Hotsawp layout:

already add step caps

Information

Specification

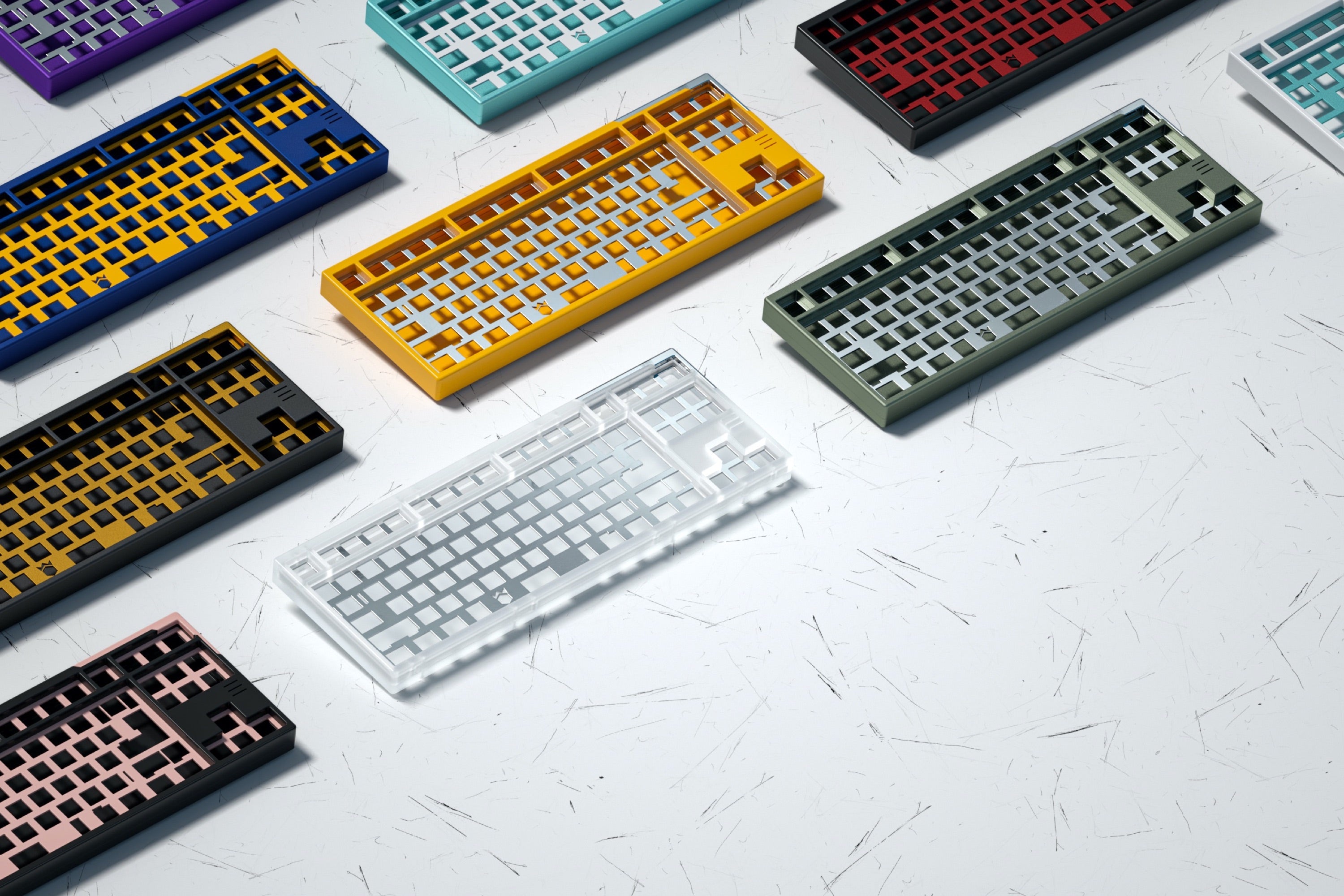

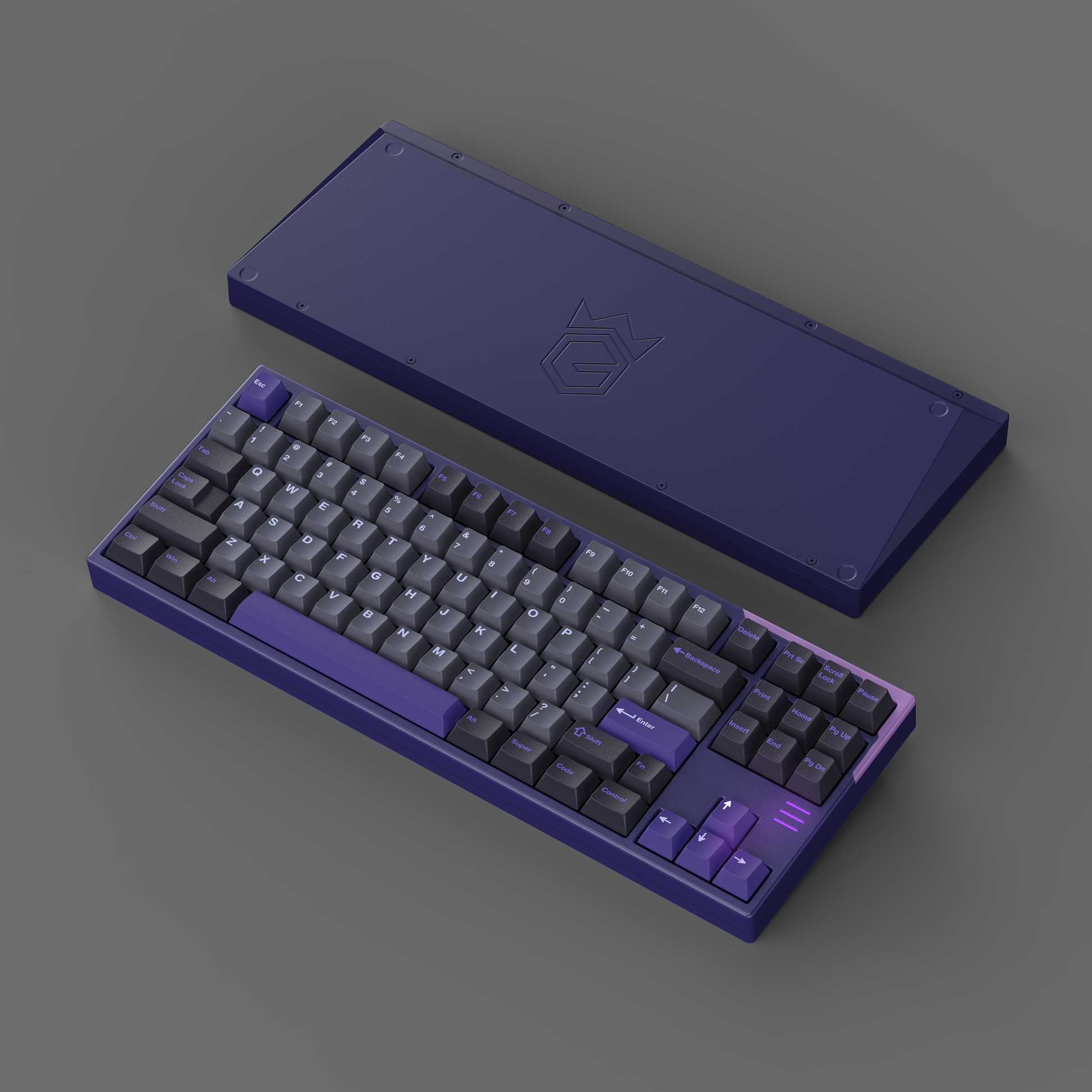

All color options:

  • E-coating: Yellow / Black / White / Pink
  • Anodizing: Green / Grey / Purple

Other features:

  • USB-C port
  • 7° typing angle
  • Aluminum 6063
  • PCB supports QMK
  • PCB supports screw-in stabilizers

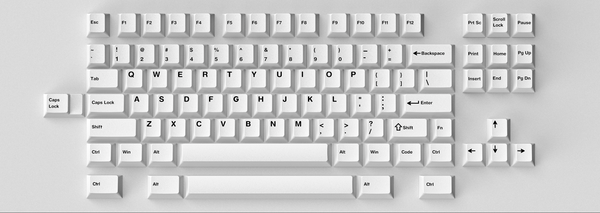

  • PCB supports standard TKL layout and WKL TKL layout.

Base Kit

  • Mounting Hardware
  • Aluminum Bottom Case
  • Aluminum or Brass Plate
  • Aluminum or Brass Weight
  • Aluminum Top Case (WK or WKL)
  • Aluminum or Brass Stabilizer Mount Bars (PVD Silver)
  • The kit does not come with any switches, stabilizers, or keycaps.
