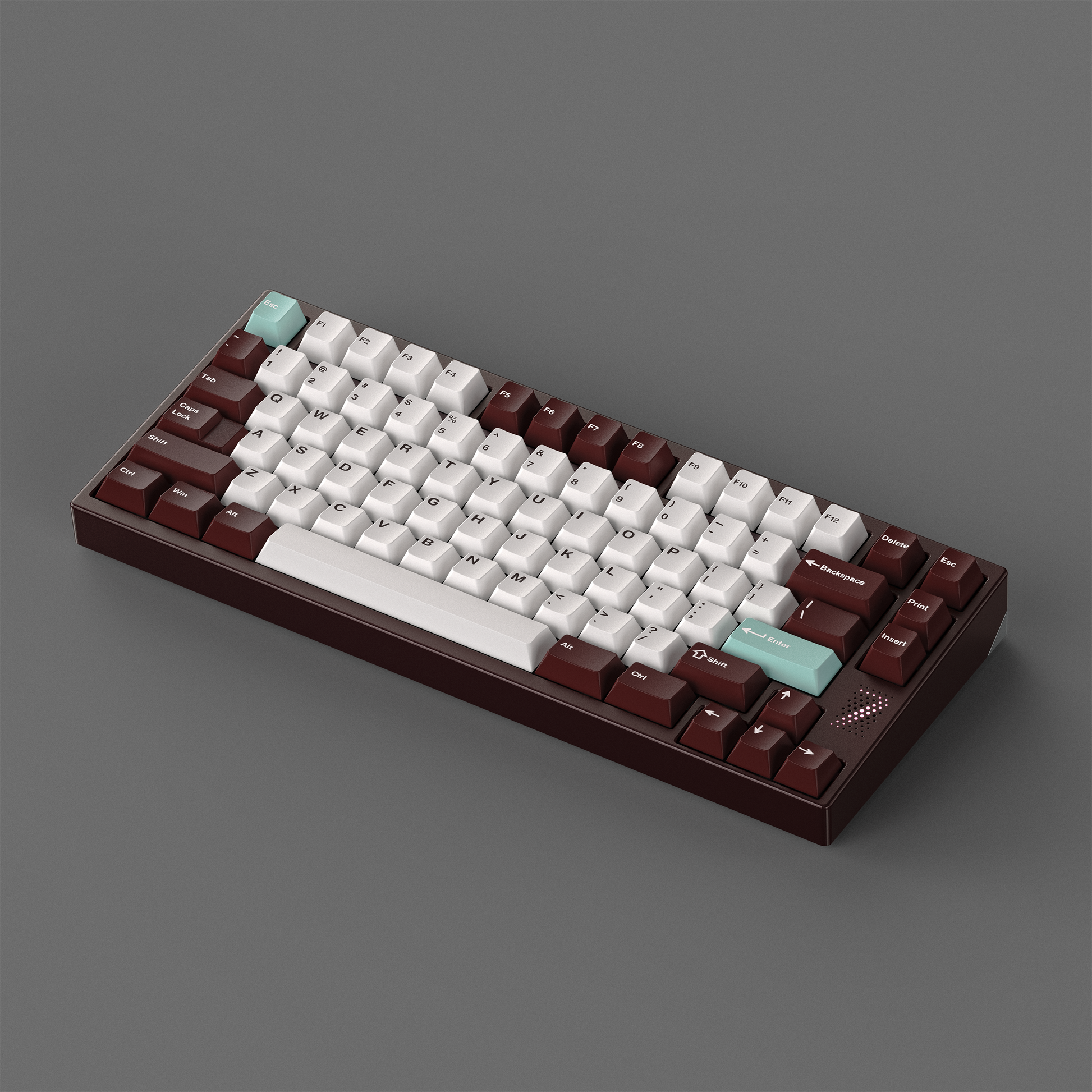

Exclusive E7-V2

Exclusive E7-V2

Description

E7-V2 was launched in 2021 which is based on our first 75% keyboard E7-V1, where we keep the original layout and slim bezel (the principle that we stick to from the beginning). But this time, your latest Exclusive keyboard will be equipped with gasket mounting system, using gasket rubber instead of o-ring.
View full details

ABOUT E7-V2

  • Details
  • Typing Review

Design Details

Case design

  • Side RGB strips and glowing bottom Exclusive logo sync with the top LED panel — fully customizable via QMK/VIA.

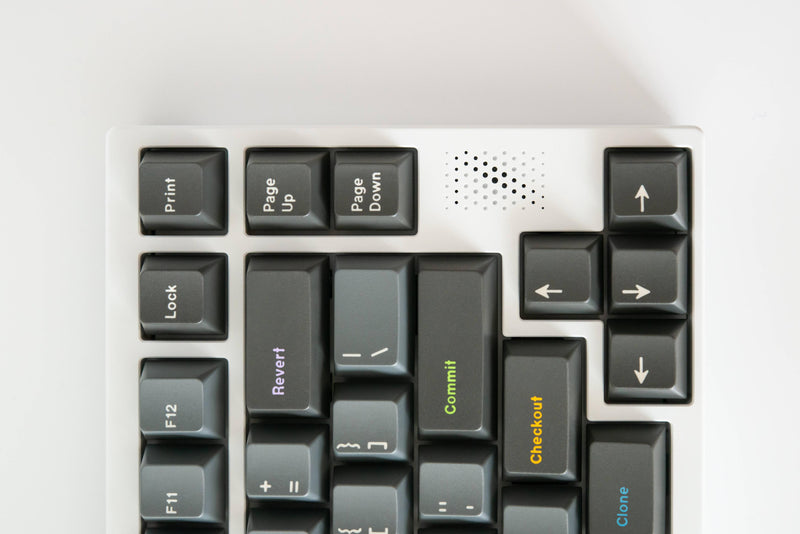

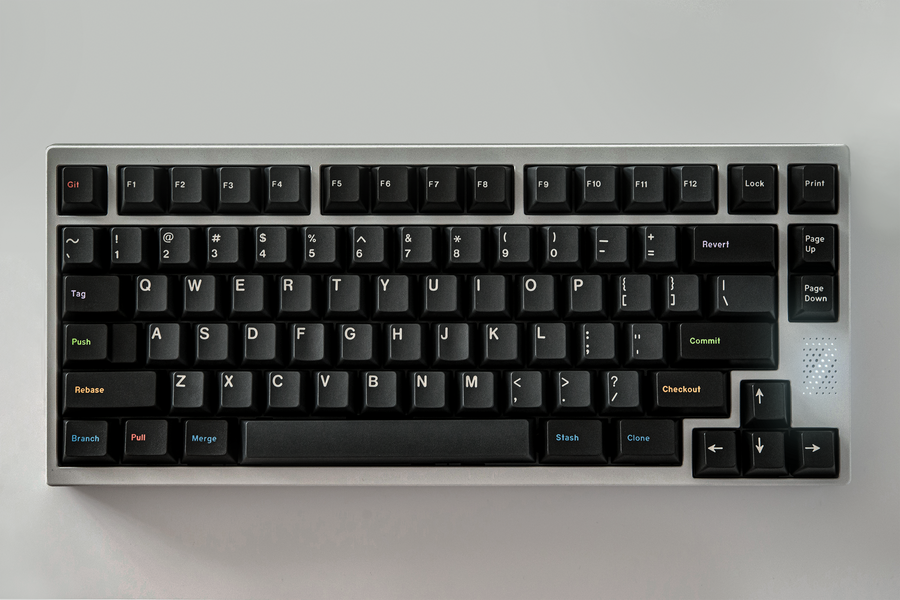

  • "7" LED Panel-Unique perforated top case forms a glowing "7" between the arrow and nav clusters. Fully customizable RGB.
  • Typing Angle reduced to 5° (from 5.5° on E7-V1) with an 18 mm front height → natural typing feel in a sleek, non-bulky package.

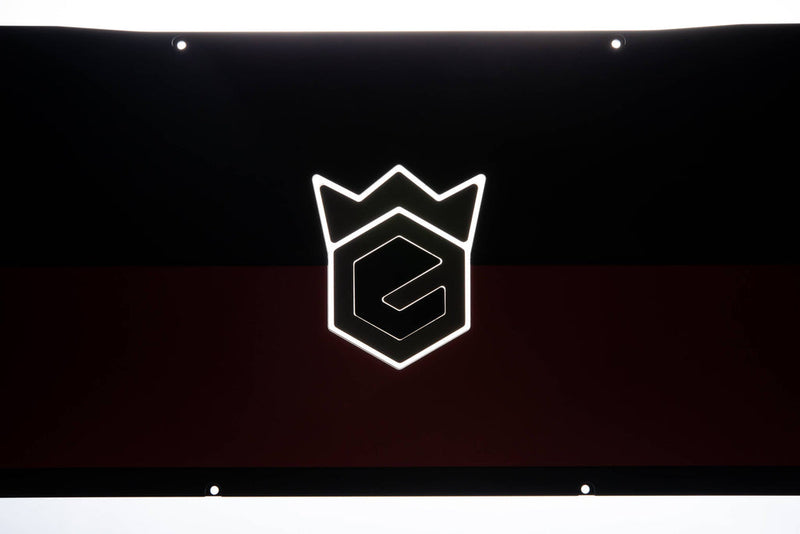

  • Case design-The contrast between the bottom case and the LOGO really makes the LOGO stand out, when underglow lights up!

Structure

Gasket mount design

Instead of the o-ring gasket mount used on E8.5 and E6.5, we will be using a rubber gasket on E7-V2.Check out this blog post for more behind-the-scene design thinking!

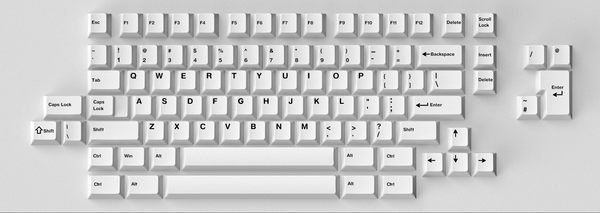

Solder Layout

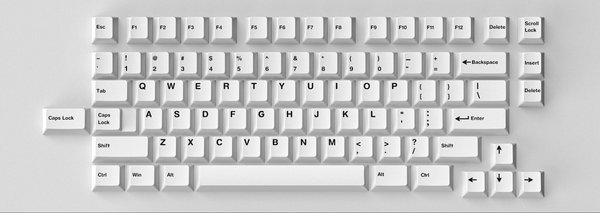

Hotswap Layout

Information

Specification

  • Weight: Aluminum, Brass (upgrade)
  • Backplate: Aluminum,Brass (upgrade)
  • Plate: Aluminum, Brass (upgrade), FR-4
  • PCB supports QMK + VIA, we will offer both solder and hotswap versions.
  • Polycarbonate will be used for light strip or under glow different user part.

Base Kit

Default Configurations for the Kit:

  • Mute Pad
  • Aluminum Plate
  • Aluminum Backplate
  • Aluminum Logo Weight
  • Black with Gold trace PCB
  • Daughterboard and LED Pad PCB

The kit does not come with any switches, stabilizers, or keycaps.
